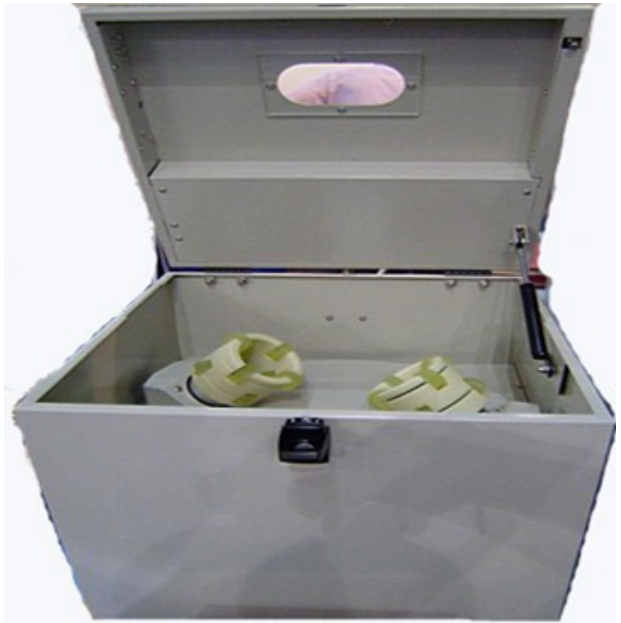

The centrifugal solder paste mixer DK - 1000

Application:

By utilizing the principle of planetary motion simulation, the solid and liquid components in the solder paste are thoroughly stirred to achieve completely consistent density, which can exhibit better thixotropy and soldering ability in subsequent screen printing and reflow soldering. It can also standardize homework and reduce the probability of solder paste absorbing water vapor.

Features:

Double safety design, door lock, and proximity switch ensure personal safety.

Tilt the solder paste can to ensure thorough mixing and eliminate bubbles.

The solder paste can is easy to access and store. The solder paste can placed at a 45 degree angle rotates along the axis direction, and the solder paste will not adhere to the paste cover.

Technical parameters:

Working voltage: 220V AC (50hz) 60W Panasonic motor

110V AC (60hz) 60W (option)

Operating speed: One rotation: 1000RPM Second rotation: 380RPM

Work ability: 500g * 2 cans

Acceptable solder paste can: M can body diameter Ø 60 Ø 67 standard equipment

S tank diameter Ø 53- Ø 60 (option, please contact the supplier)

L tank diameter Ø 67- Ø 84 (option, please contact the supplier)

Time setting: 0.1-9.9 minutes, with each adjustment lasting 0.1 minutes;

10-30 minutes, adjust for 1.0 minute each time;

Display and Warning: LED digital display, flashing lights, and buzzer warning
