Automatic PCB machine models/GAM - 320

· Full set of series high speed CCD visual automatic correction system, big radial improve the cutting accuracy and operating efficiency.

· Use the cutting points of high-speed spindle do PCB board, segmentation, low stress, high accuracy, and can accommodate any shape of circuit board.

· Double mesa movement, can perform points plate cutting and circuit board placed at the same time, improve work efficiency.

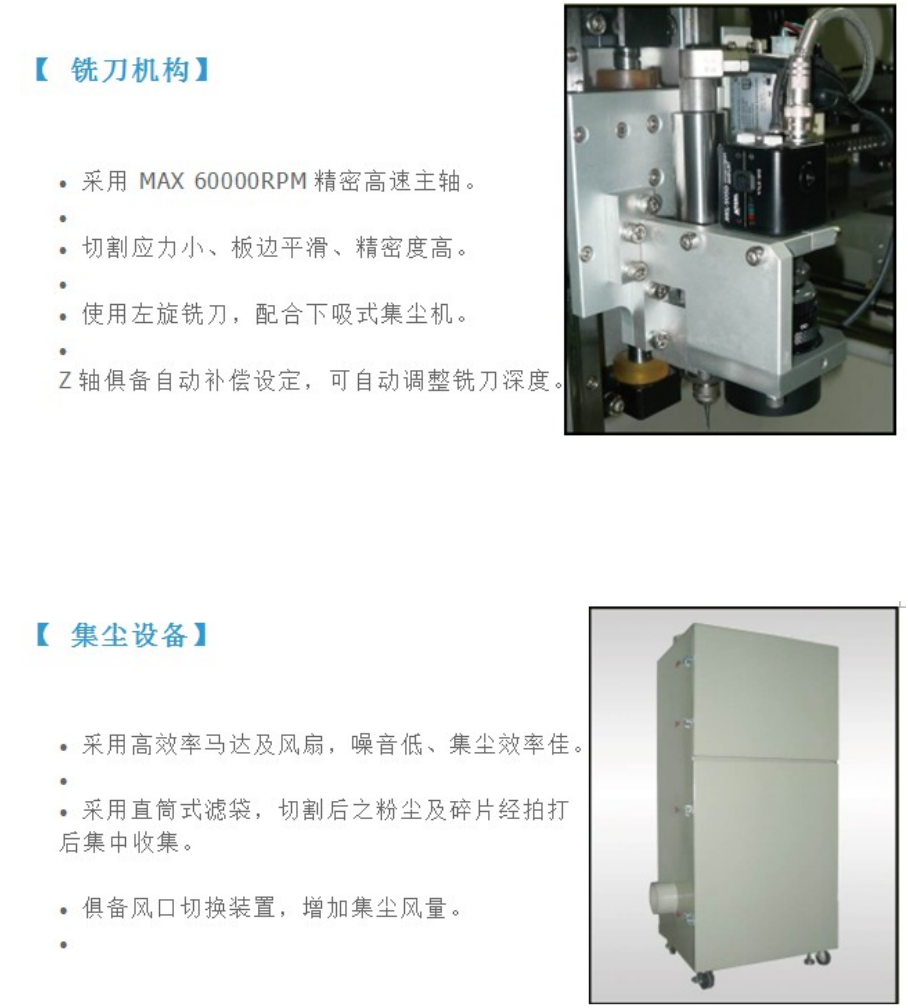

· Patent efficient dust collection device, low noise to improve efficiency, maintain clean easily.

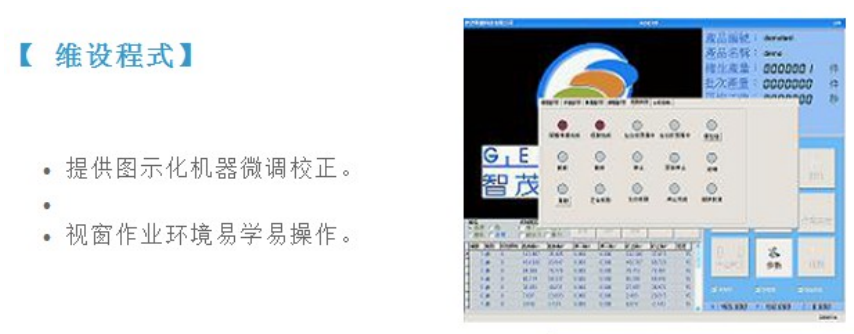

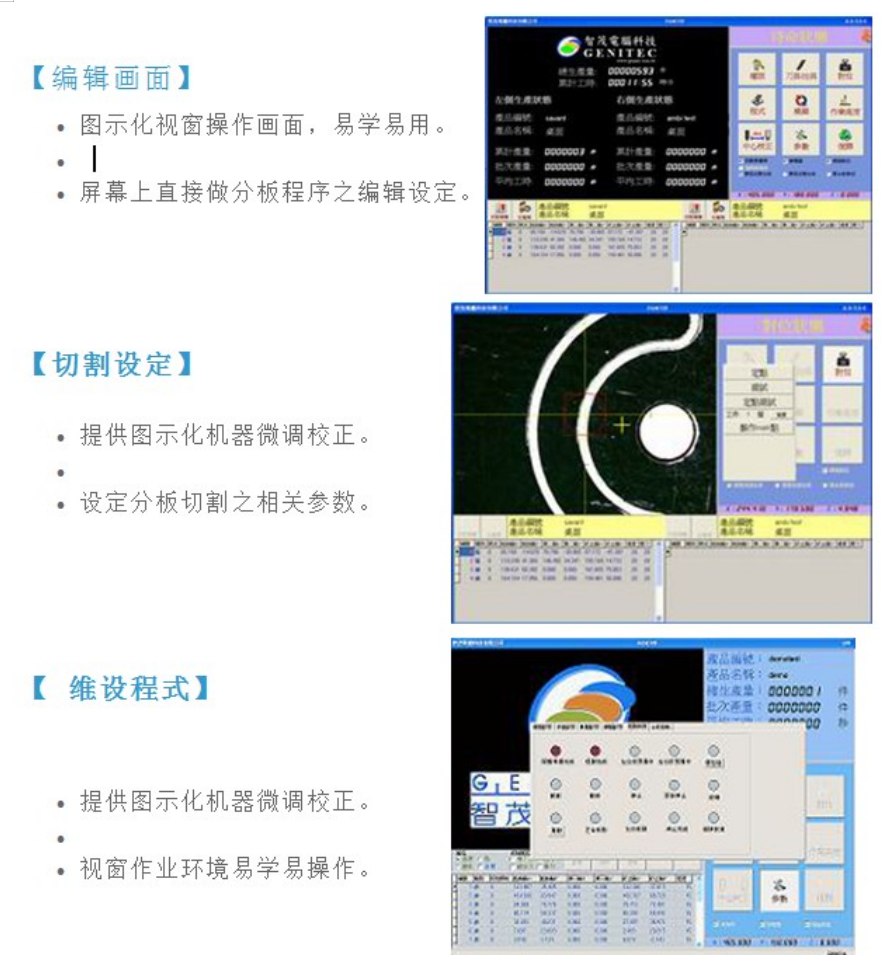

· Windows, Windows operating system security, stability, easy to learn and easy to use.

【The machine used】

· Whole series of high-speed CCD visual para corrected device, especially suitable for high precision and high capacity of the PCB board.

· Suitable for mobile phones, digital cameras,GPS、PDAandMODULESuch as kind of small even more board againPCBPlate.

· Increase the size for digital TV,PCHost, workstations, servers, and other points of large PCB board processing.

· Can choose a standard fixture or special points of the plate cutting auxiliary fixture do increase production capacity.

· Using double work platform of the workpiece, reducing waiting time, increase production capacity.
