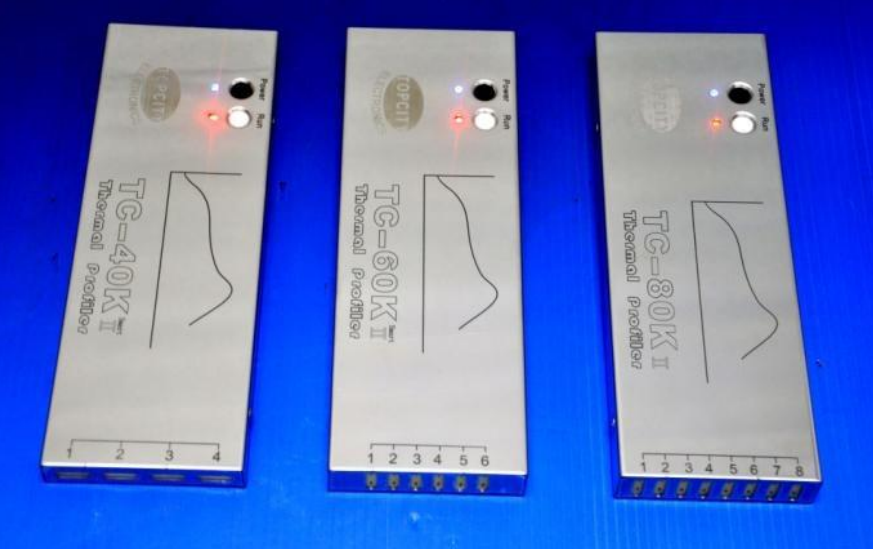

Temperature analyzer TC - 60 k

Product description:

Can test 256 group continuously temperature curve and can draw points temperature range of 20 line segment,According toROIThe temperature of the straight line analyzer!Accurate test furnace temperature curve, professional analysis software, test and analysis for wave soldering and reflow furnace temperature curve provide accurate technical index determination and optimized.Widely used in electronic industrySMTMount and plug-inPCBThe temperature of the welding process, apply in other industries at the same time the temperature of the surveying and mapping and analysis (e.g., food, environment, coating, oven, tunnel oven...)

The main technical indicators:

1, model specifications: TC-60K

2, test channels: 6 CH

3, thermal galvanic couple:Ktype

4, temperature measuring range:- 100-500℃

5, temperature measurement accuracy: + / - 1 ℃

6, in distinguishing rate:0.1℃(The whole range)

7, record data:120000point/Each channel

8, sampling interval:0.05 -- -- -- -- -- - 600Second software Settings

9, the total energy rate: 100 mw or less

10, working voltage:3.6V(the built-in rechargeable battery)

11, appearance size:208(L)x75(W)x20(H)mm

12, protective box size:252(L)x88(W)x30(H)mm

13, wingspan width:98------218mm(The standard)

14, communication port:RS-232 orUSB (optional)

15, analysis software:e-DataPro Both English and Chinese three languages

Instrument configuration:

1, 2, instrument protection box temperature analyzer, 3, 4, software installation disk 5 thermocouple, data output line

6, high temperature tape 7 8, chargers, instrument box 9 10, tweezers, scissors

11, insulating gloves 12, cross the self-contained silk knife 13 14 15, user manual, high-temperature tin wire, product certification

Temperature curve analysis set function (data analysis) :

1, reflow furnace and wave furnace temperature area set temperature and speed of transport

2, temperature sampling point location names and PCB diagram

3, the time between two temperature value

4, the slope between the two temperature value

5, the slope between the two time points

6, beyond the specified temperature of time

7, the highest temperature and temperature at any time point

8, horizontal lines to temperature, vertical moments and the time between the two times

9, grid, edit elaboration and curve zoom display

10, simulation curve function, process optimization, test date and time

11, the company name, product name and note information input

12, choose print direction (vertical and horizontal print print)

13 and temperature data can be exported to Excel for editing

14, insert the picture function, make the temperature test point location in the clear

15, invoke multiple sets of temperature curve were compared

16, real-time monitoring and instrumentation record two work modes

17, manual removal and software to remove the instrument memory data

18, manual, specify the time, three startup mode specified temperature

New features:

1, increase process indicators (PWI) analysis

2, increase the solder paste information management

3, increase equipment information management

4, increase product information management

5, horizontal lines to temperature and time point mobile editor

6, instrument power never lose data

7, 256 pairs of temperature data recorder can record continuously, download a grouping, exempt from running back and forth between the office and in the workshop, waste your precious time
